SBP Series
3.6-5 kW | Single phase | AC-coupled retrofit inverter (LV)
POWIĄZANE PDF >>
Export control
Grid-interactive

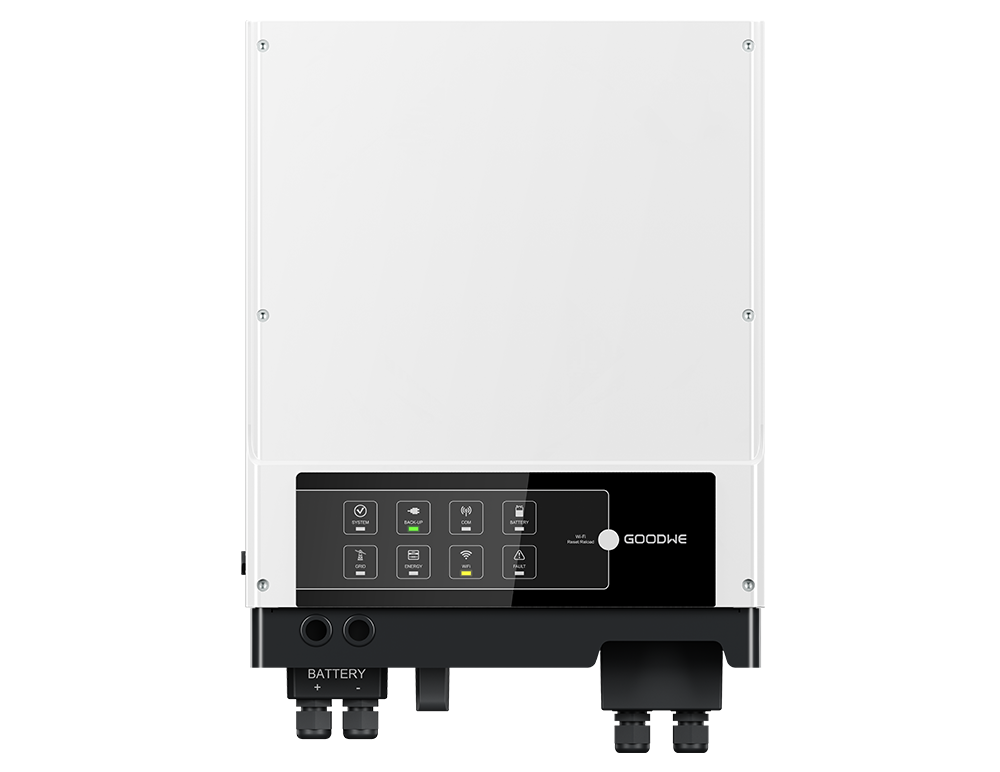

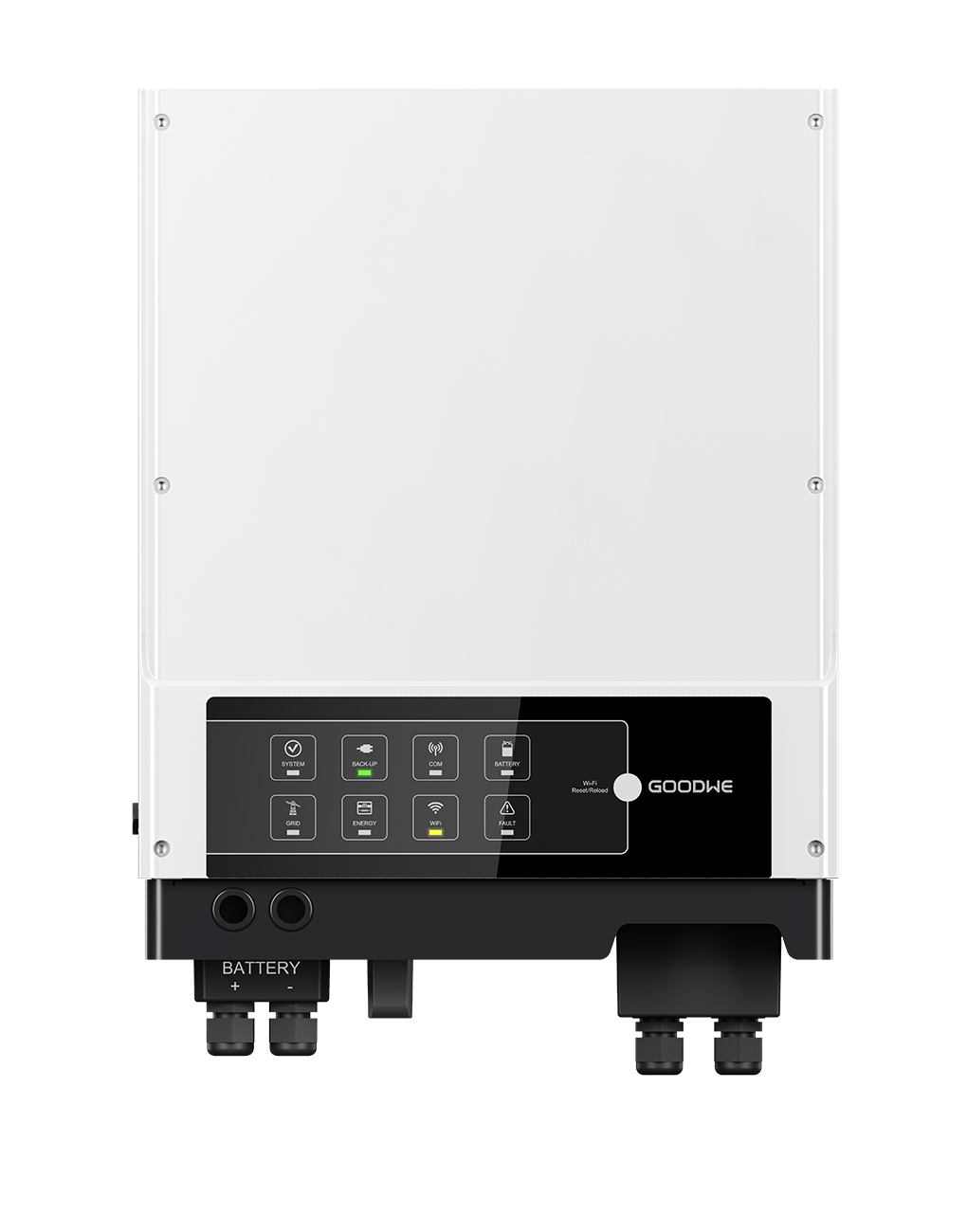

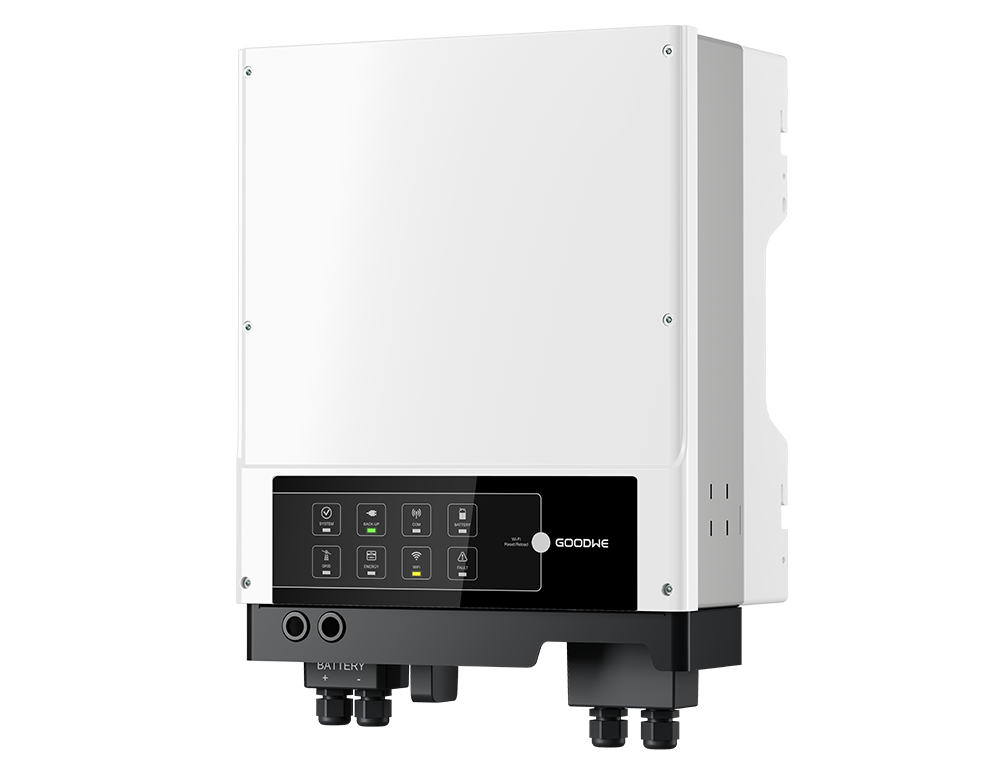

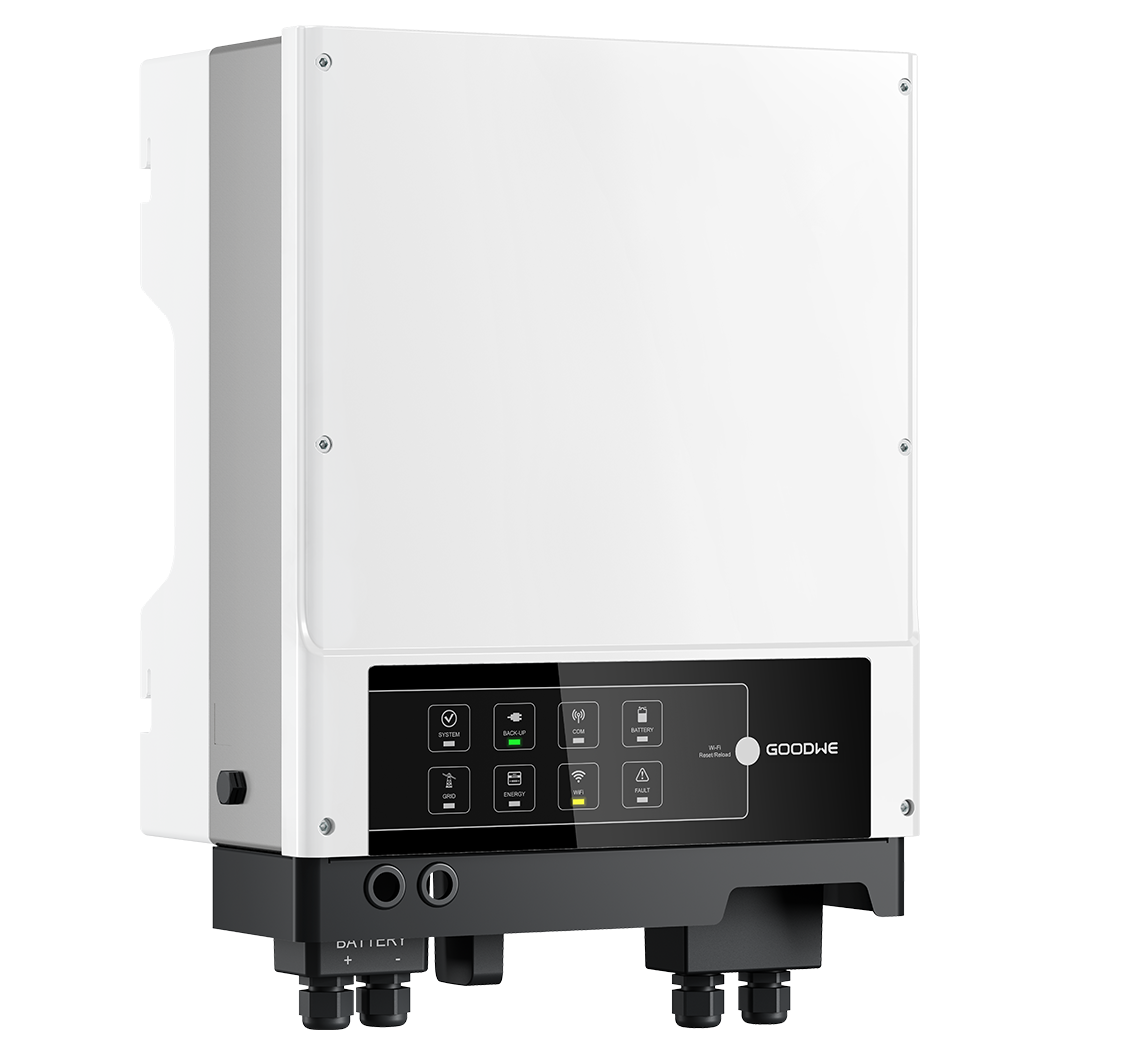

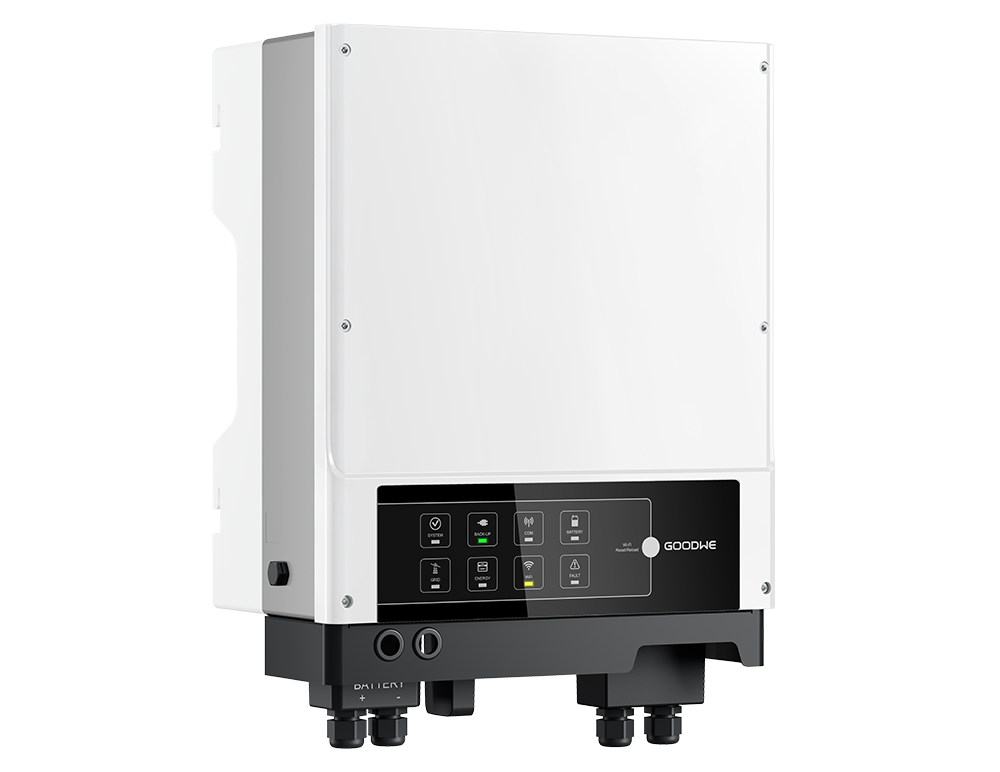

The GoodWe SBP series is the world’s first AC-coupled battery storage retrofit solution with UPS function for both single-phase and three-phase systems. It can effectively upgrade any existing string inverter system by adding a backup battery. Capable of being grid-interactive, it allows users to store surplus power and sell it back to the grid when demand peaks and the price of electricity is at its highest. With UPS-level switching function (switching time <10 ms), the GoodWe SBP provides uninterruptible power supply to inductive loads such as air conditioners or refrigerators.
Suitable for both single-phase & three-phase systems
Export control (zero export)
Smart BMS
<10 ms UPS-level switching
Export control
Grid-interactive
UPS-level Switching
GoodWe SBP provides uninterruptible power supply (UPS) to inductive loads such as air conditioners or refrigerators.
Capable of Being Grid-interactive
GoodWe SBP is designed to interact with the grid. In this case, SBP allows selling electricity back to the grid or charging batteries through the grid.
OVERVIEW
Model
GW5000S-BP
Battery Voltage Range (V)
48
Max. Charging Current(A)
100
Max. Discharging Current (A)
100
Nominal Output Voltage (V)
230
Protection Degree
IP65
Model
GW3600S-BP
Battery Voltage Range (V)
48
Max. Charging Current(A)
75
Max. Discharging Current (A)
75
Nominal Output Voltage (V)
230
Protection Degree
IP65
