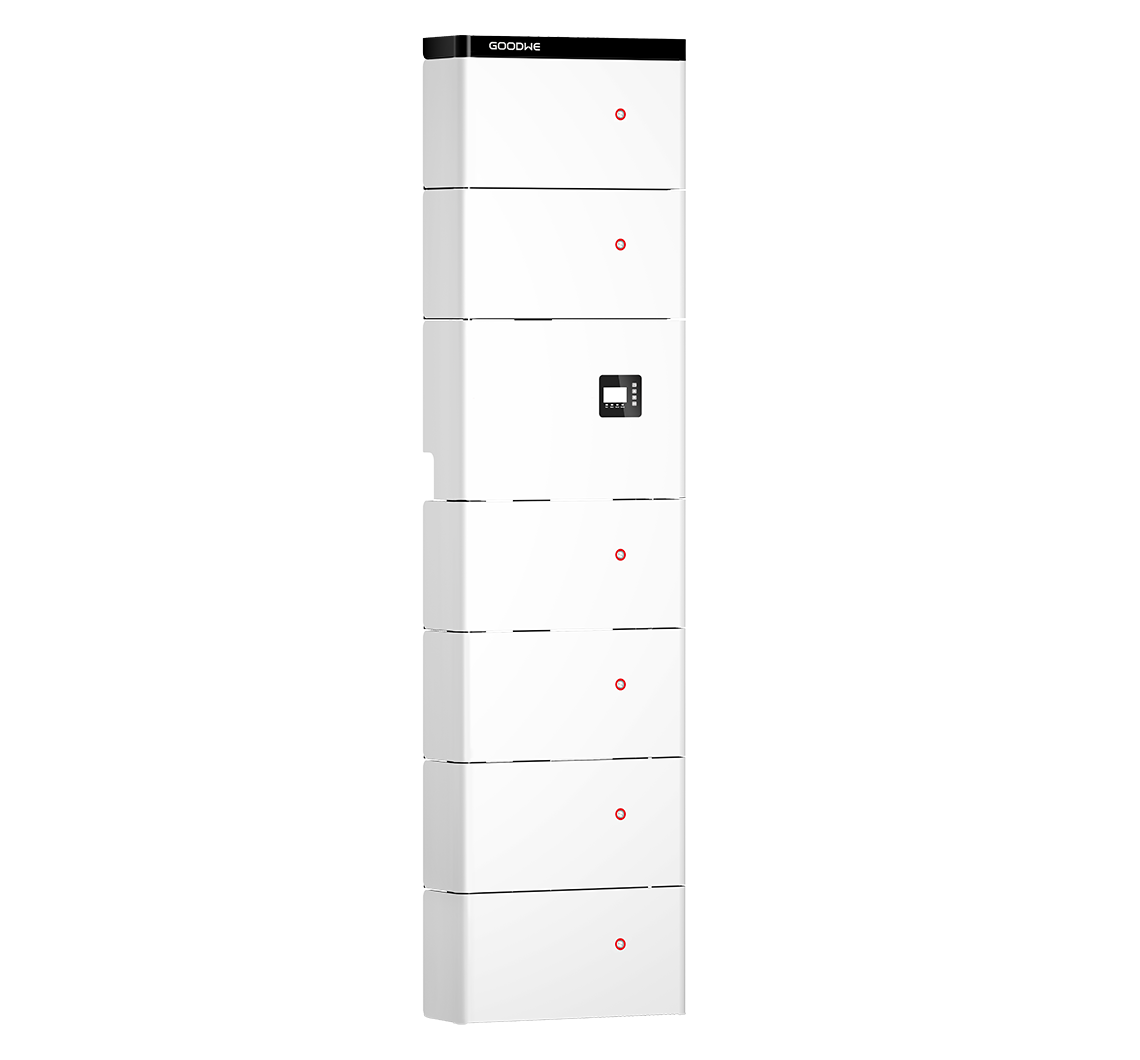

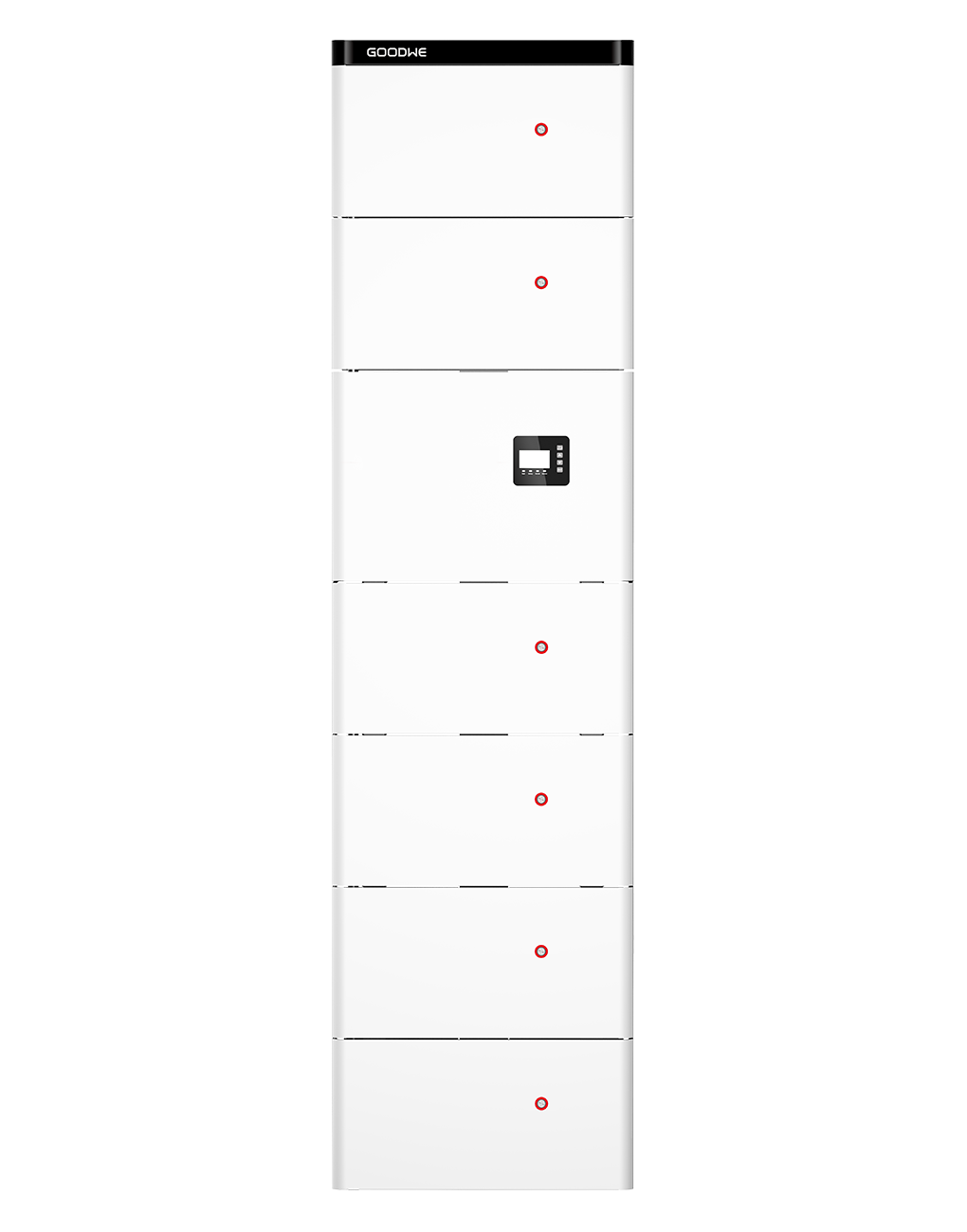

SECU-S Series
(North America only) 12.8-20.5 kWh | High voltage battery
POWIĄZANE PDF >>
Rapid charge
HV
The GoodWe SECU-S Series is specially designed for highvoltage storage systems. This superior battery, unique in its class, comes with an expandable modular design that allows for quick and easy O&M. Thanks to its NEMA 4X/IP65 protection degree, it can be mounted either indoors or outdoors. It is very space-efficient and offers customers increased choices and flexibility (up to eight pieces connected in series). It is made from Lithium iron phosphate, the safest battery cell technology and has a high charging rate, ensuring superb performance and long lifespan.
Safe and Reliable
Ultra rapid charge
Up to 8 modules in series
Flexible installation
Rapid charge
HV
Charge your battery within one hour
When SECU-S Series batteries are compatible with inverters that allows 50A max. charging current, the whole system can be fully charged within only one hour.
Safe & reliable
SECU-S series is made from LFP (LiFePO4), the safest battery cell technology, providing you with reliability and long lifespan.
IP65
LiFePO4
10-year warranty
OVERVIEW
Model
SECU-S13
Usable Energy (kWh)
11.52
Cell Type
LFP (LiFePO4)
Rated Voltage (V)
256
Weight (kg)
200
Max Charge/Discharge Current (A)
50
Model
SECU-S15
Usable Energy (kWh)
13.83
Cell Type
LFP (LiFePO4)
Rated Voltage (V)
307.2
Weight (kg)
237
Max Charge/Discharge Current (A)
50
Model
SECU-S18
Usable Energy (kWh)
16.13
Cell Type
LFP (LiFePO4)
Rated Voltage (V)
358.4
Weight (kg)
274
Max Charge/Discharge Current (A)
50
Model
SECU-S20
Usable Energy (kWh)
18.43
Cell Type
LFP (LiFePO4)
Rated Voltage (V)
409.6
Weight (kg)
311
Max Charge/Discharge Current (A)
50
