Galaxy Series
BMT-G1/096A | 285W | Featherweight PVBM
POWIĄZANE PDF >>

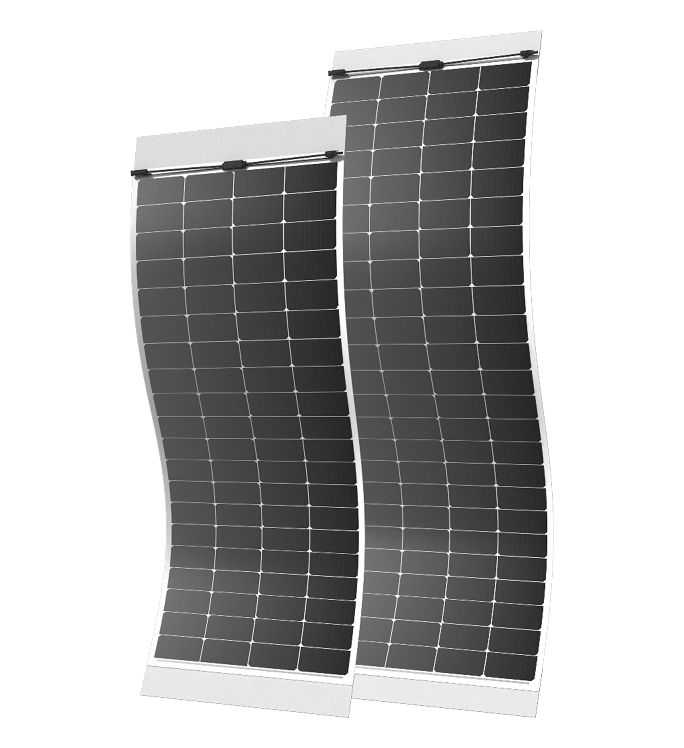

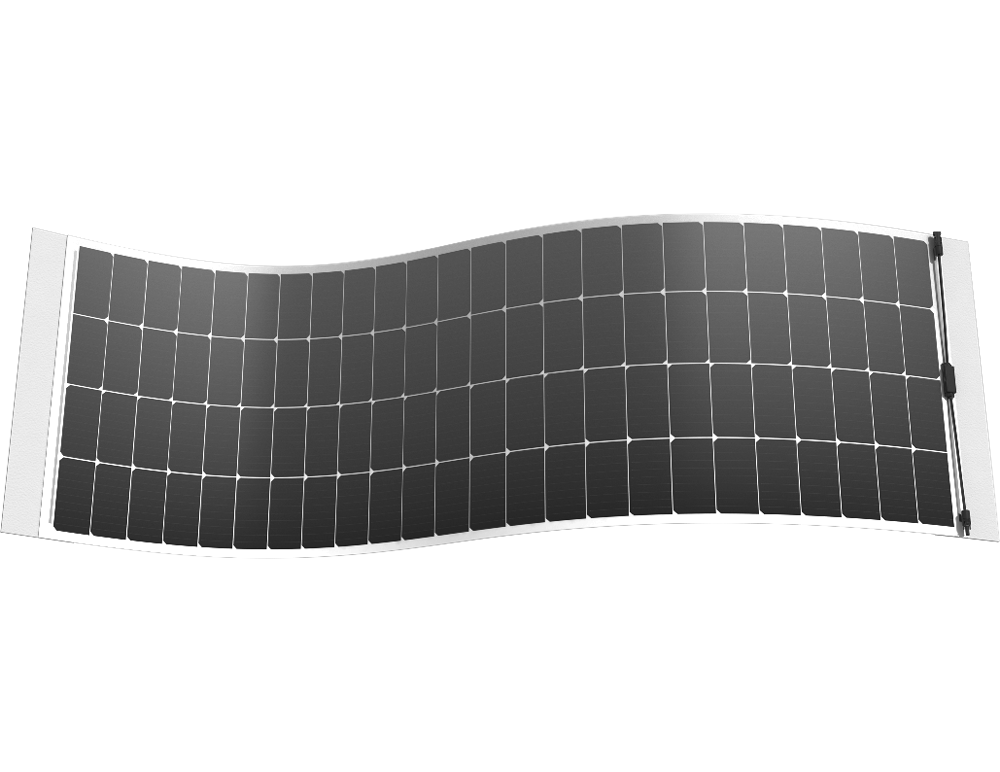

In GoodWe Galaxy series featherweight PV building material, solar cells are packaged by integrating thermoplastic polyolefin waterproofing material into lightweight corrosion resistant panels, resulting in an anti-aging, waterproofing solar activated building material that minimizes the impact on roof mechanical load. Galaxy series can be deployed directly on to the roof via hot air soldering without the need of mounting rails. The rapid and streamlined installation process offers visible overall savings on both labor cost and material cost.
185W/m² Power per square meter
4.3kg/m² Featherweight Polymer material
25 Years lifetime UV resistant
Arc Fault Circuit Interrupter 2.0 | Hi-tech hackery safeguarding your home from electrical hazard
With thousands of connection points in a PV generation system, DC arc fault is the primary risk to building electrical safety. As a smart energy innovator who pivot around electrical safety, GoodWe has developed AFCI2.0 technology which offers full lifecycle protection to photovoltaic-integrated buildings.
AFCI2.0 - faster(<0.5s), safer and more accurate
Superior data sampling capability, 100% arc detection rate
Rapid response, intelligent circuit interruption
OVERVIEW
Model Number
BMT-G1/096A
Weight
4.3kg/m²
Waterproofing
Enhanced TPO integrated
Installation method
Hot air soldering, mechanical attachment and more
Power per square meter
185W/m²
Compatible to RSD
Module level rapid shutdown
